hogbackfab
67-87 GM front shackles for stock shackle hanger
Couldn't load pickup availability
Beef up your front suspension with one of our front HD shackle kits!
Applications: 1967-1987 (1988, 1989, 1990, and 1991) GM Truck and SUV still using the stock shackle hanger and not our upgraded kit found HERE

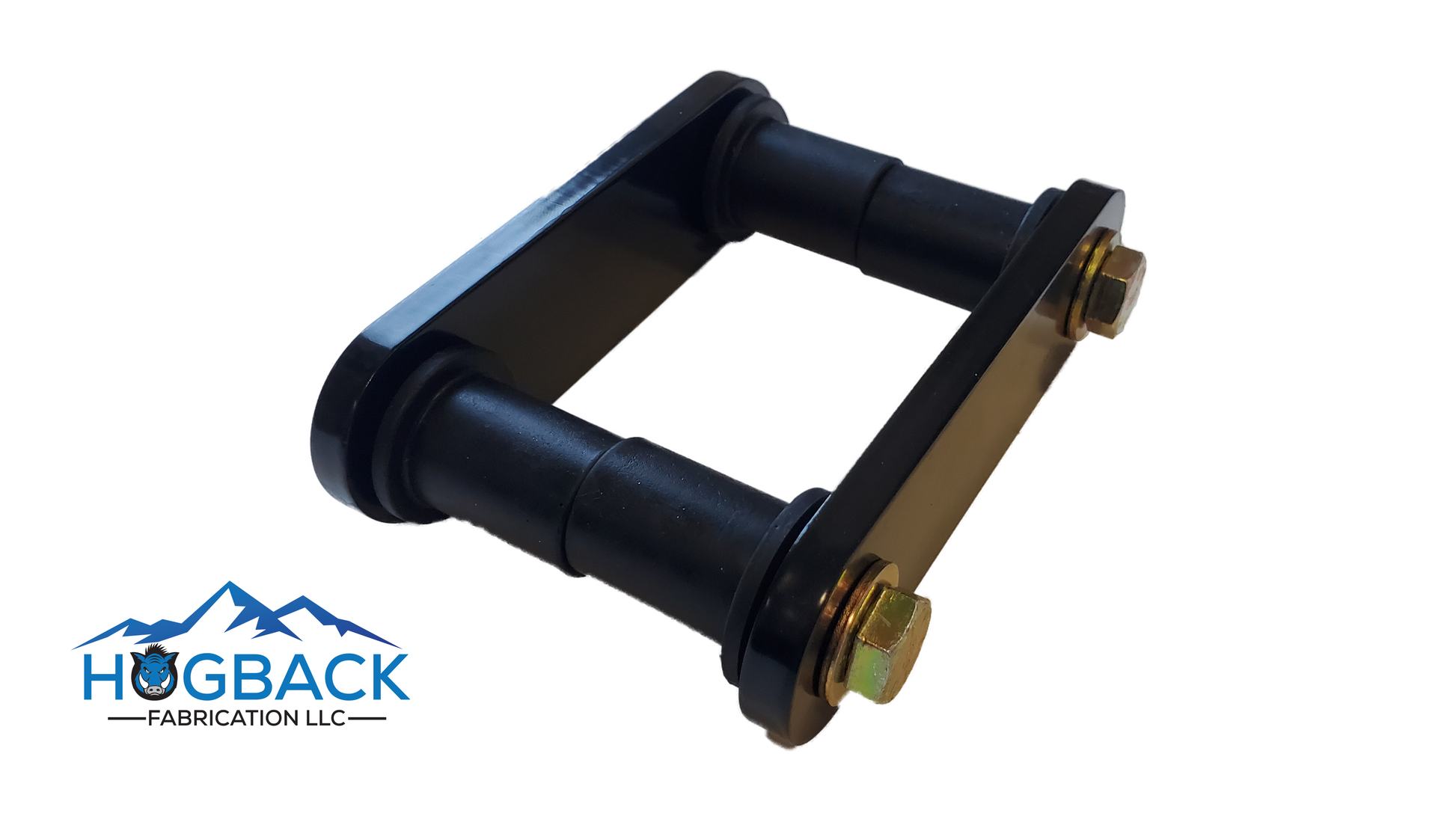

What is the front HD shackle kit?
On your front suspension there are two points that connect your leaf spring to the frame, a fixed point at the front and a shackle at the rear. This kit replaces the shackle end of your truck.
What are the benefits of the front HD shackle kit?
The suspension of these trucks sees a whole lot of abuse, from off road to towing. The stock stuff just doesn't cut it, that is where our HD shackle kit comes in. With this replacement you will have peace of mind that your truck can handle any task!
Increase bolt size from 7/16" to 1/2"!
Comes powder coated gloss black!
- Safely lift/jack truck up and put on jack stands. Make sure to use proper safety gear and equipment
- Locate front shackle hanger and remove leaf spring and shackle plates from it
- Remove bushing/bolts in the frame and leaf spring
- Bolt in leaf spring and shackle plates to front shackle hanger. The rest is reverse of removal.
- After driving 100 miles make sure to re-torque bolts
HOG TIP: Need some replacement heavy duty shackle hangers? We carry those HERE

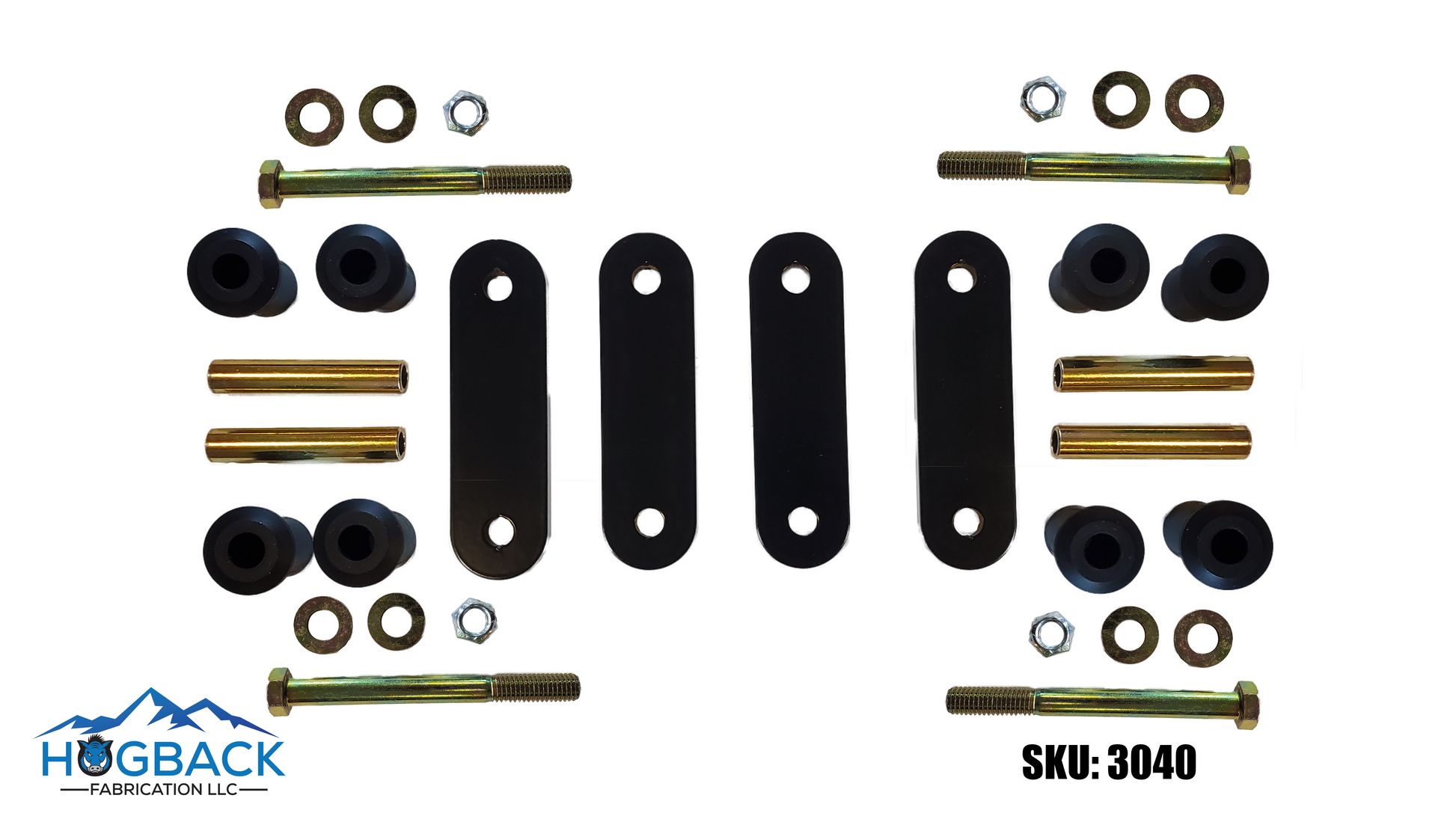

Materials
Materials
Gloss black powder coated steel.
Sleeves are chromoly
Hardware is grade 8
Comes with bolts, washers, and top lock nuts
Bushings are poly
