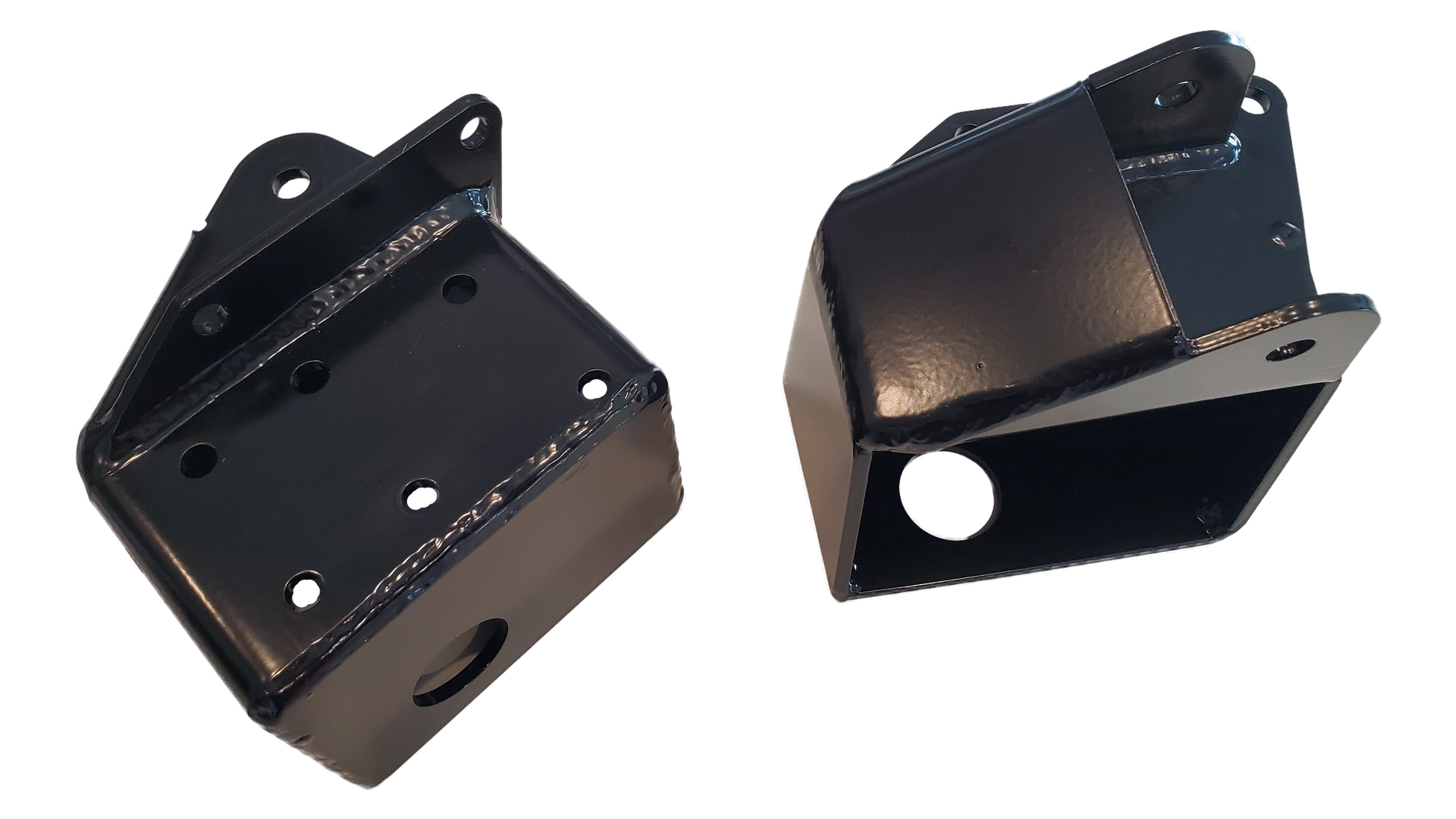

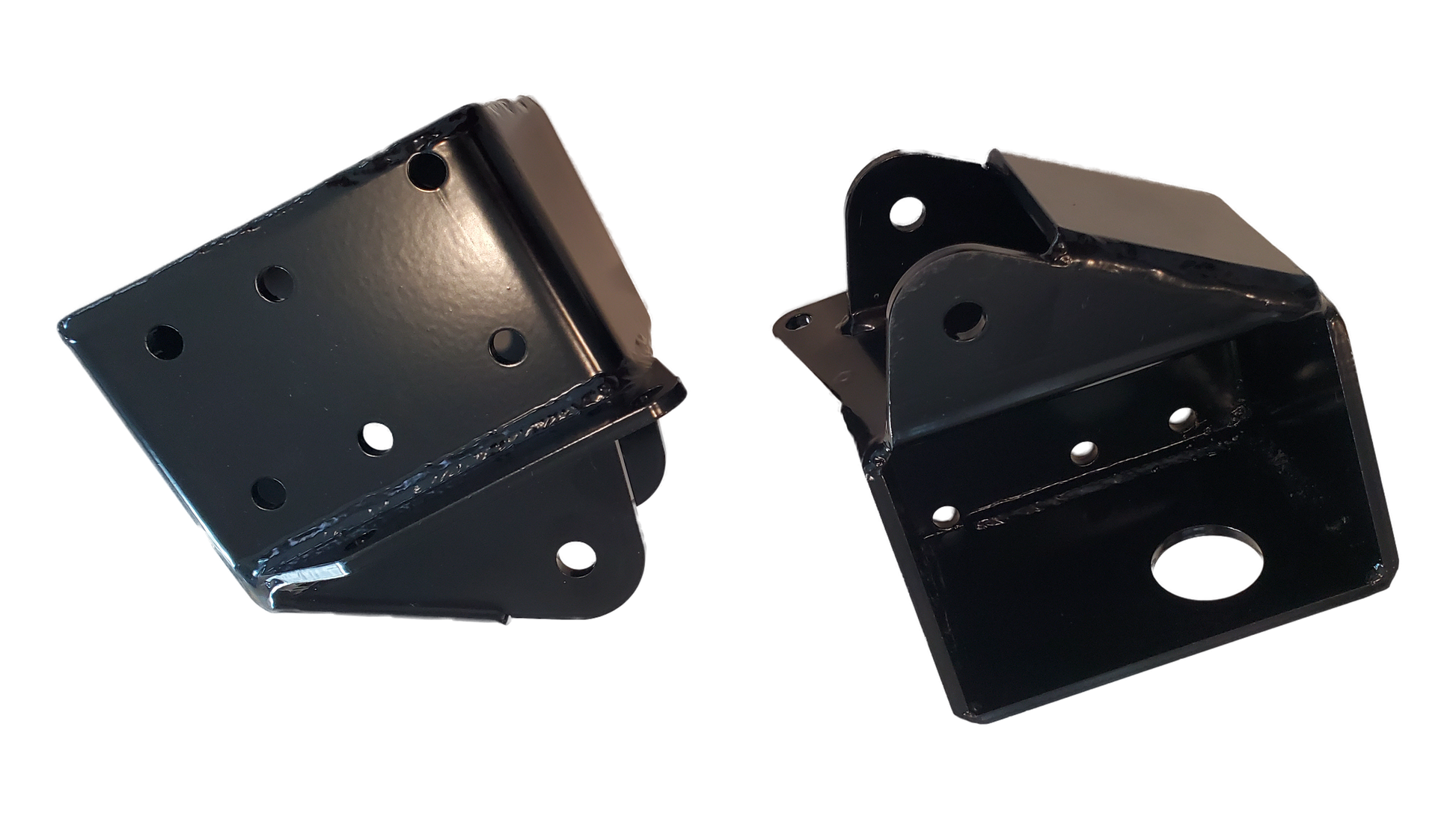

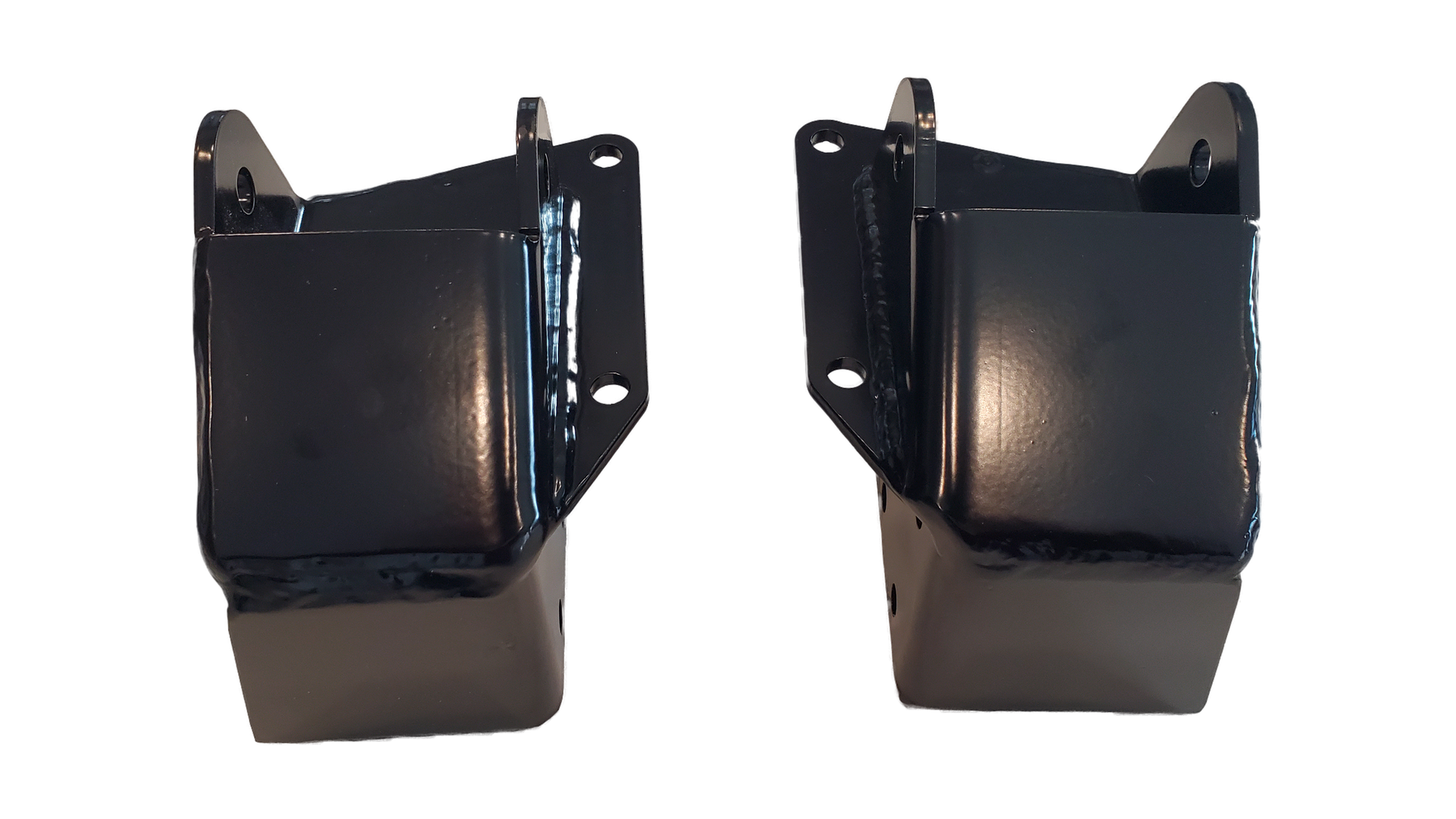

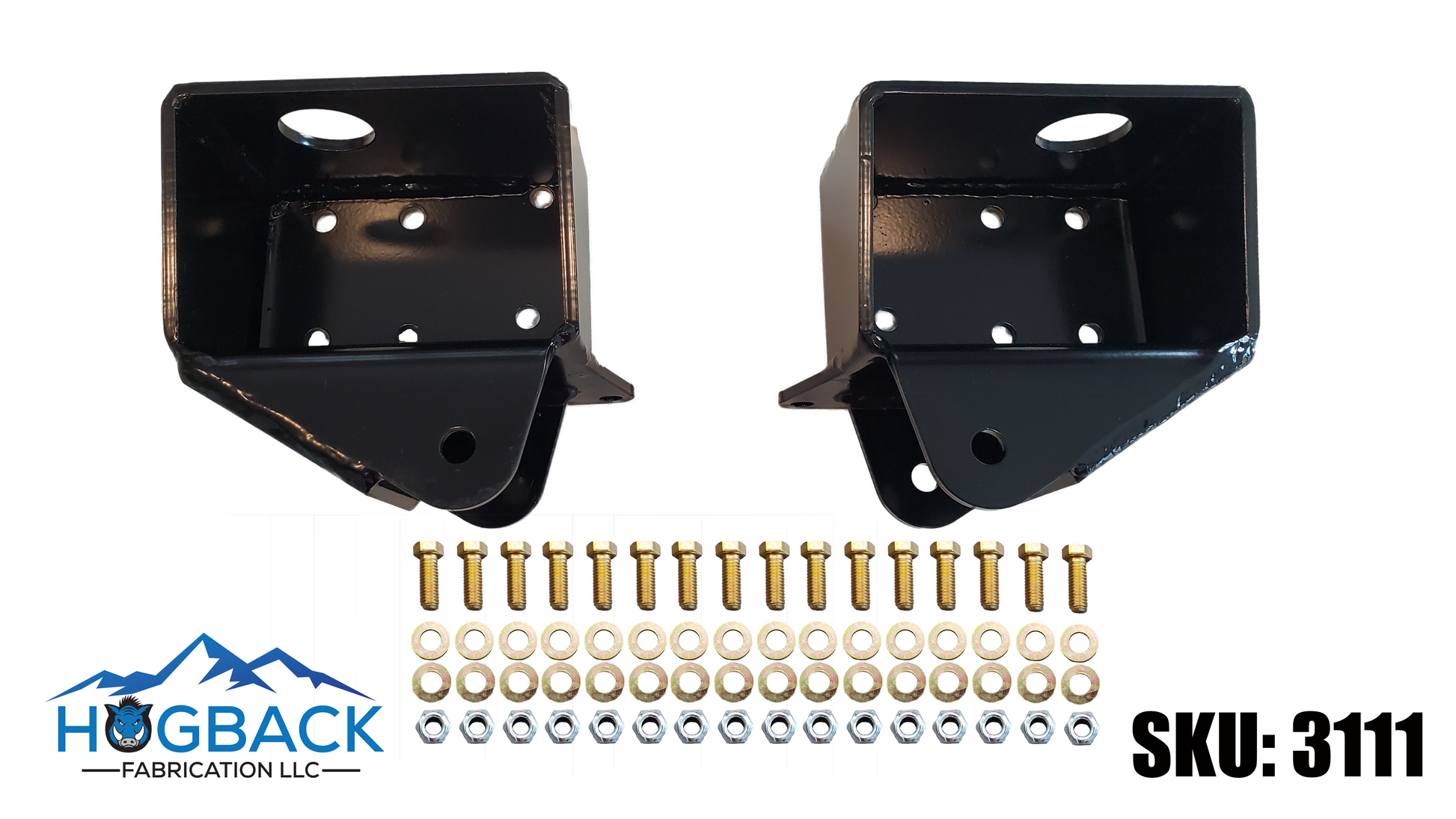

73-80 GM front main eye hanger

NOTE: Mounting holes will need to be drilled in frame since they are not there from factory

On the front suspension of a 4x4 truck there are two points where the leaf spring connects to the frame. The fixed point, main eye (front of the spring, closest to bumper) and the shackle point, rear eye. Our main eye bracket is great for doing 4x4 conversions.

The stock main eye brackets have been on these trucks for some 40+ years and are typically pretty beat. It is very common to find cracks and ovaling of mounting locations. That is where our main eye hanger comes in, it is a much heavier duty version of the stock unit making the 4x4 swap much easier. Our front main eye even comes with a new bracket for your body mount making it a solid strong one piece design.

How easy is it to install the front main eye?

Very easy!

1. Safely lift/jack truck up and put on jack stands. Make sure to use proper safety gear and equip
2. Locate the front body mount hanger
3. Remove rivets holding  hanger on frame. This can be done super fast with an air chisel. Another method is using a cutoff wheel to cut an X in the rivet. Then take a hand chisel to the heads to remove them.
4. Line up bracket on frame, mark/drill holes
5. Bolt in new main eye hanger torque bolts to 60 FT/LBS
6. Bolt leaf spring  into new main eye hanger
7. After driving 100 miles make sure to re-torque bolts

Note: Front bumper brackets may need to be modified, but its worth it for a much stronger hanger!

Note: These ship in (2) packages so don't be alarmed if on shows up before the other.
