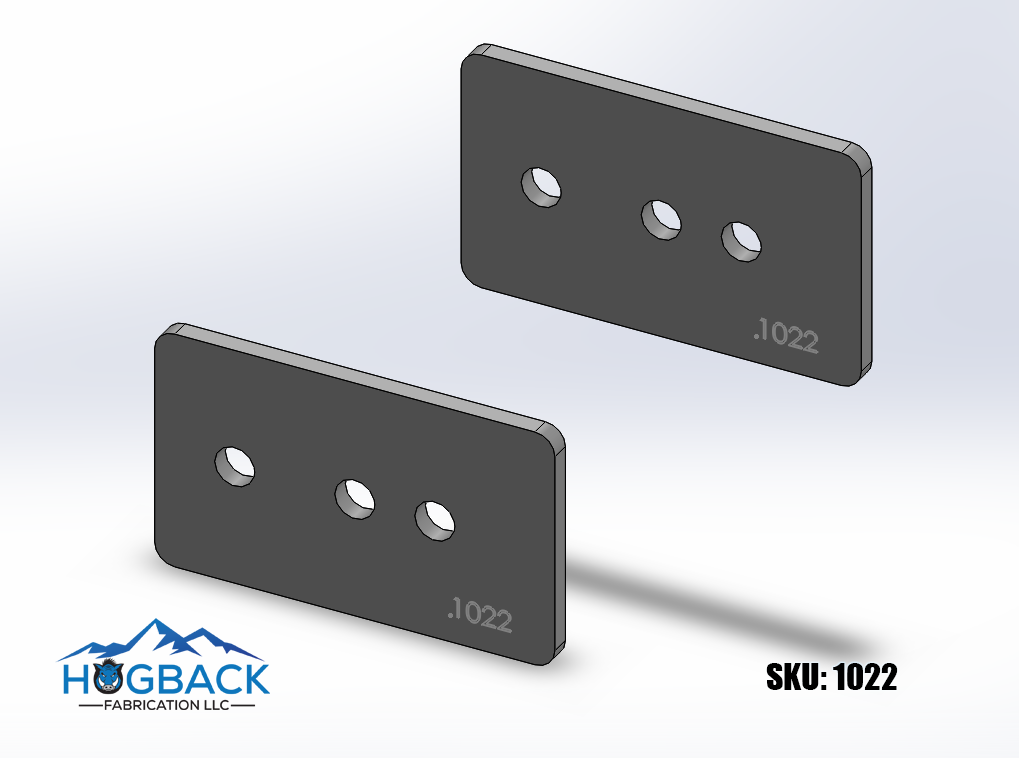

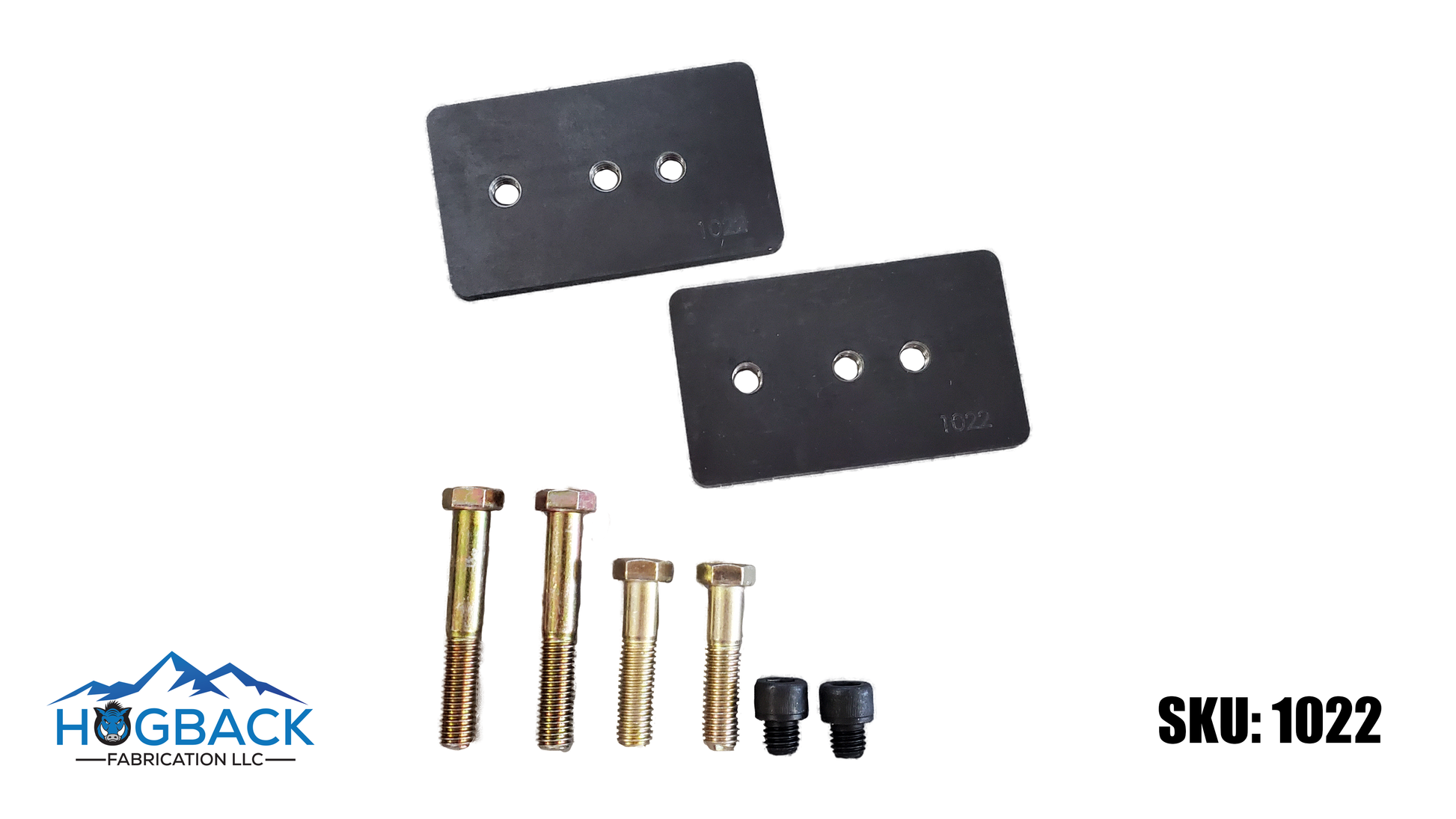

3 inch wide axle relocation plates, 1/2 Inch Center Pin

Easily adjust the position of your axle with these axle relocation plates!

Applications: Vehicles with a 3" wide leaf spring (measured at center of leaf spring) that uses a 1/2" leaf spring center pin (diameter of pin, not size of socket). These are common for 94-02 HD Dodge

What are the benefits of the axle relocation plates?

These are great for adjusting the position of your axle on your truck. Weather you are looking to stretch your wheelbase or center the axle in the wheel well these are for you! They are only 1/4" thick so wont mess up your ride height.  Can move your axle forward or backward  1", or 1-1/2"!

How easy is it to install the axle relocation plates?

Super easy!

For more installation pictures check out this page HERE they are in the middle of page.

1. Safely jack/lift your truck and set on jack stands.
2. Remove U-bolts and axle (make sure any lines/shocks are out of the way and not being over stretched)
3. Use C clamps to hold leaf pack together and remove the stock center pin
4. Prepare the axle relocation plate by installing the socket head screw in the center hole
5. Install 1/2 hex bolt in the leaf pack where you removed the center pin. Note the head of the bolt should be at the top and the threads will come out the bottom of the pack
6. Thread the 1/2 hex bolt in the axle relocation plate at the position you want to relocate your axle to. the hex bolt only has to be snug here as your U-Bolts will provide the clamping force
7. With a cutoff or flap wheel remove the excess 1/2 hex bolt so it is flush with the relocation plate.  Also cut flush excess Socket head screw threads on spring side of plate.
8. Install everything reverse of removal.

NOTE: You may need to round the 1/2 hex bolt head with a flap wheel to fit in your U-Bolt plates.

NOTE: If your U-bolt plate is not the slotted style you may need to drill a new hole for your new center bolt position.
