Shock Mounts for Squarebody Super 60 Swap

Bolt on shock mounts for swapping in a 2005+ Ford Superduty Dana 60 in a Squarebody GM Truck/SUV

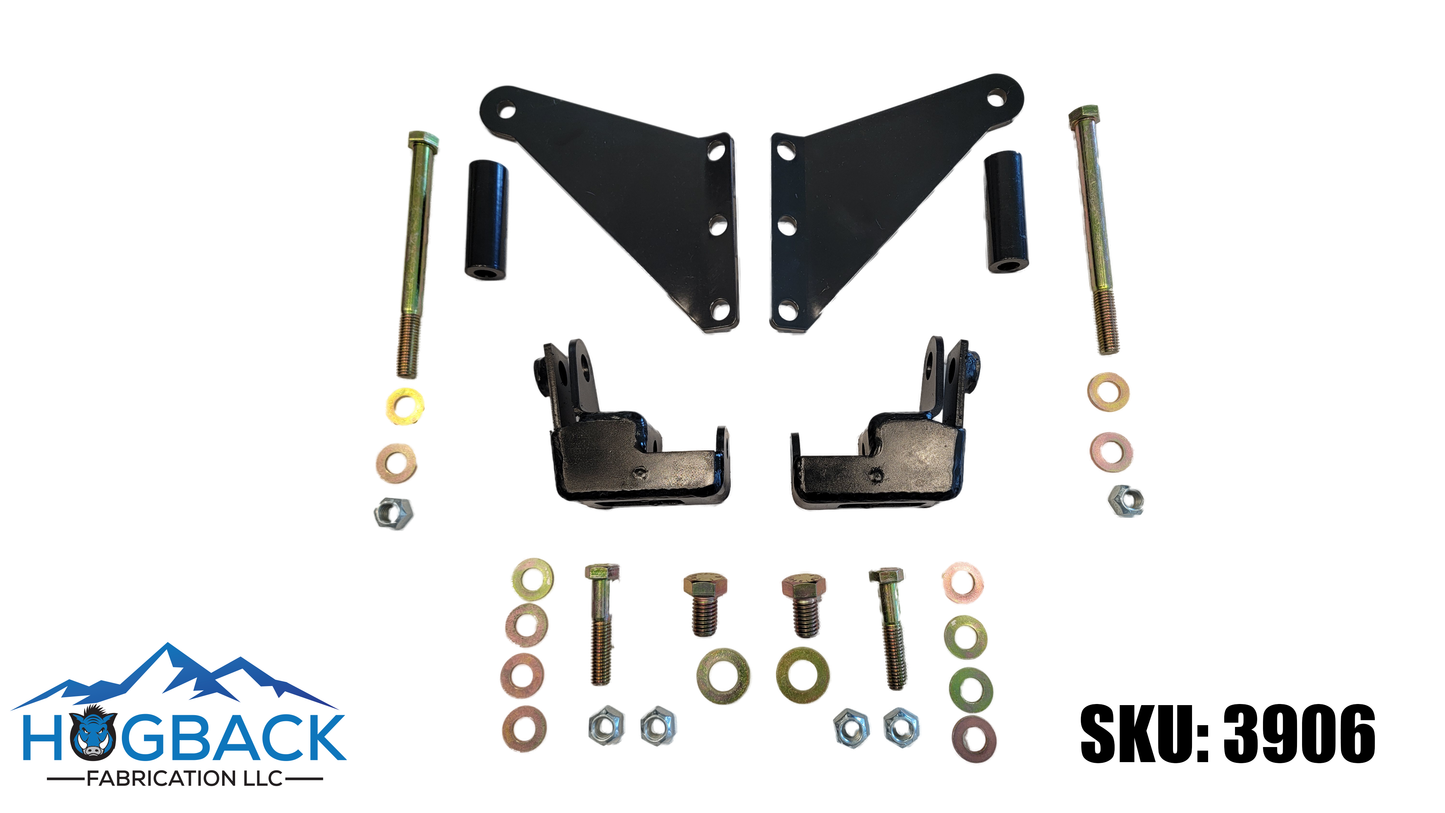

What are the Shock Mounts for Squarebody Super 60 swap?

These brackets bolt onto stock points on the 2005+ Ford Dana 60 and Chevy Squarebody frame that allow you to run a shock in the stock position. No welding required!

How easy is it to install the shock mounts for the Squarebody Super 60 Swap?

Very easy!

1. Remove the shock.
2. Remove the rivets that hold the stock upper shock bracket on, then remove the bracket.
3. There is a spacer next to the stock shock, this must be reused (sometimes the spacer is built into the shock bushing like pictured below).

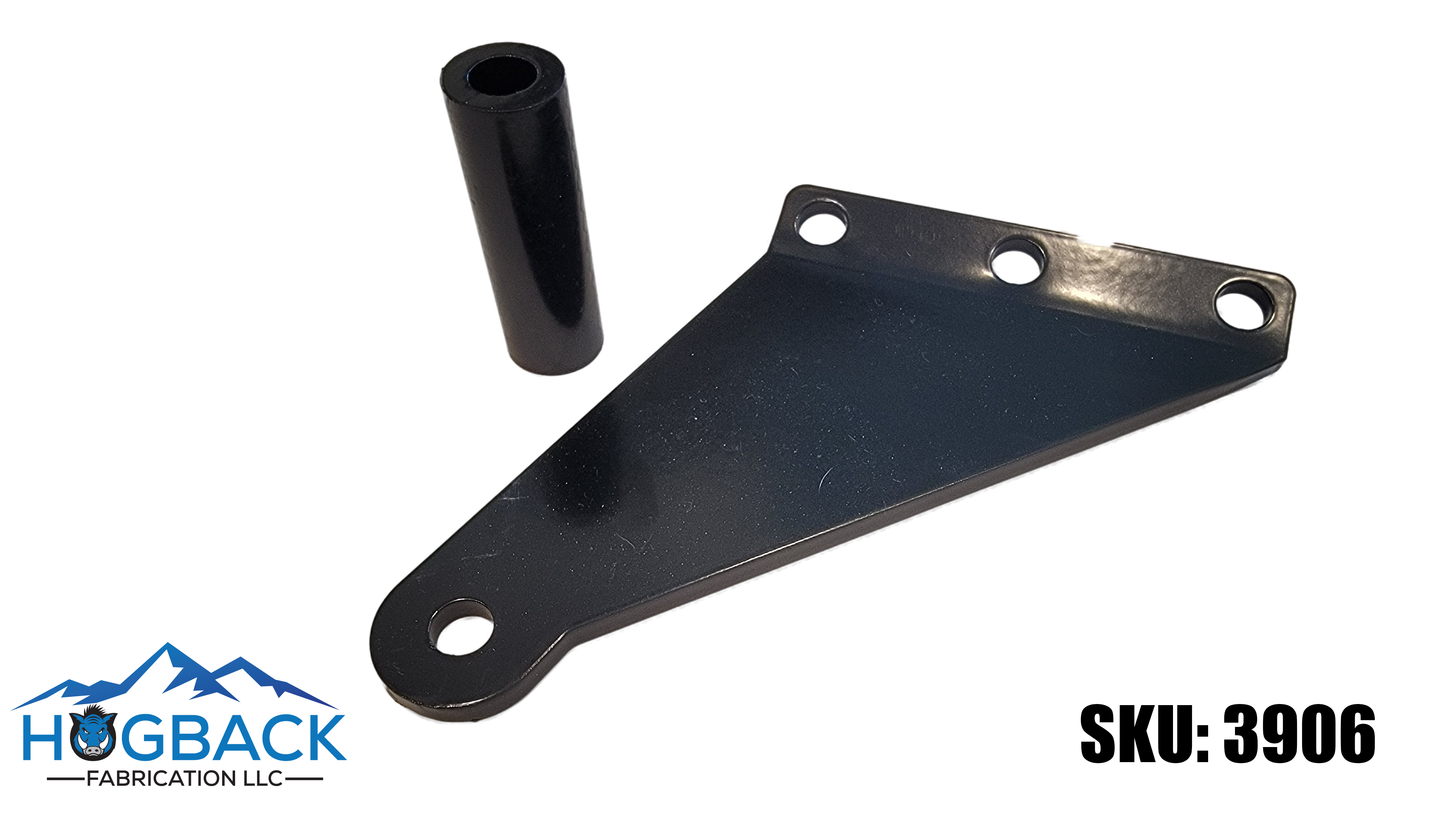

4. Run the long 1/2" bolt through the upper bracket, then the shock and stock spacer, then the spacer we provide, and finally through the frame.

5. Mark, then drill the three holes that mount the upper shock mount to the frame.
6. Attach upper bracket to the frame using 7/16" bolts/nuts, leave loose for now.


   Lower mount
7. Cut the outer portion of the stock shock mount on the axle as pictured 8.8

8. Drill hole in stock shock mount to 5/8".

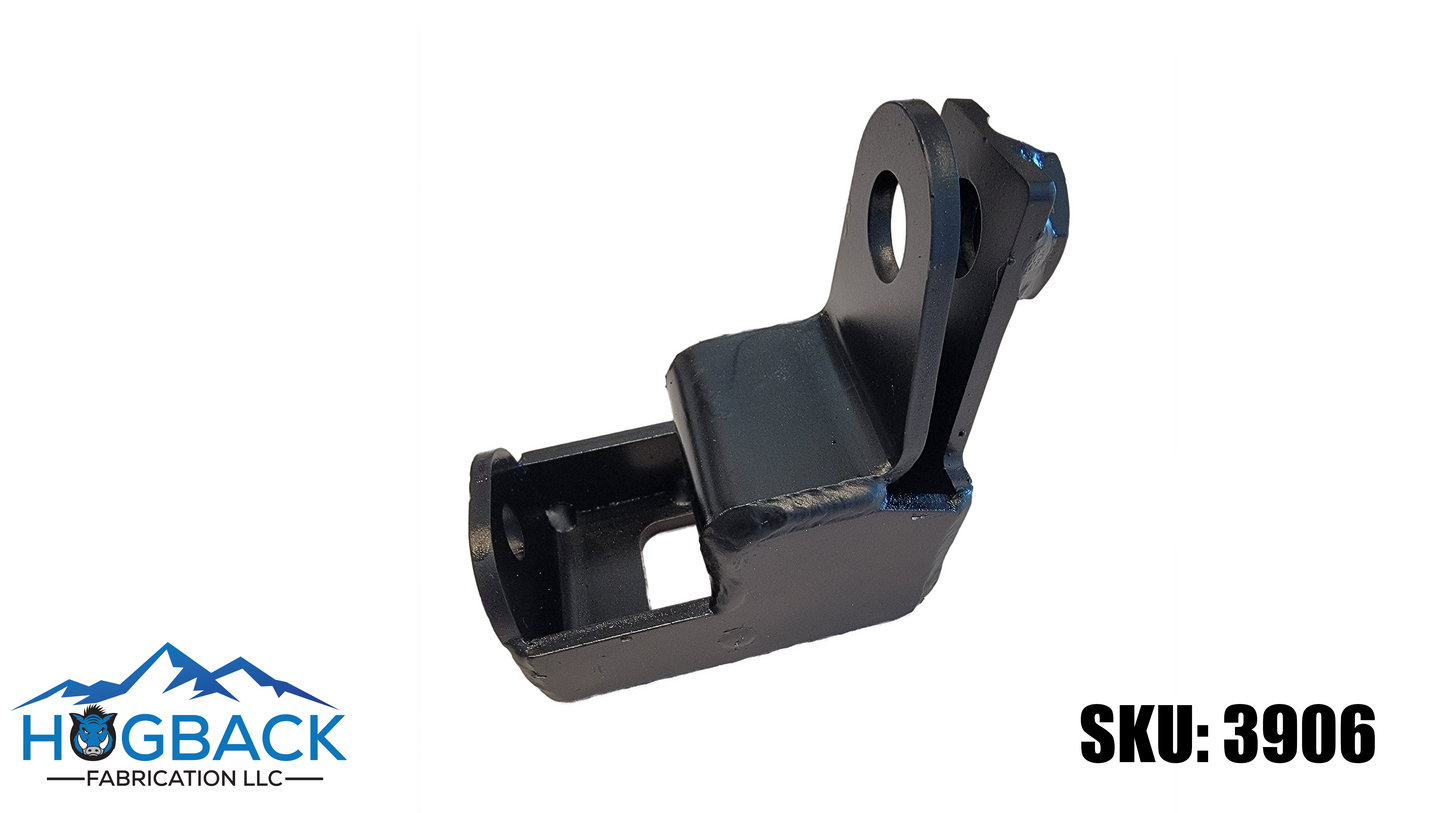

9. Slide new lower shock mount over what's left of the stock mount. Run supplied 5/8" bolt through out bracket, through the stock bracket and finally thread into the new bracket.
10. Tighten 7/16" bolts holding upper bracket to frame at 38 ft. lbs.
11. Tighten 1/2" shock bolt to 60 ft. lbs.
12. Tighten 5/8" bolt to 80 ft. lbs.
