72-93 Dodge 4 inch shackle reversal

Regular price $299.00 USD
Regular price Sale price $299.00 USD
Sale Sold out
Shipping calculated at checkout.
Lift the rear of your truck without using stiff lift springs or axle wrap causing lift blocks!
Applications: 1972-1993 Dodge Ramcharger, Pickup, First Gen Dodge

First gen dodge shackle reversal
What is a shackle reversal?
Currently the rear of your truck has a tension style shackle hanger (shackle points towards sky). Our shackle reversal replaces that stock bracket with a much stronger bracket that points the shackle towards the ground creating lift. Everything else about how your truck rides is kept the same!

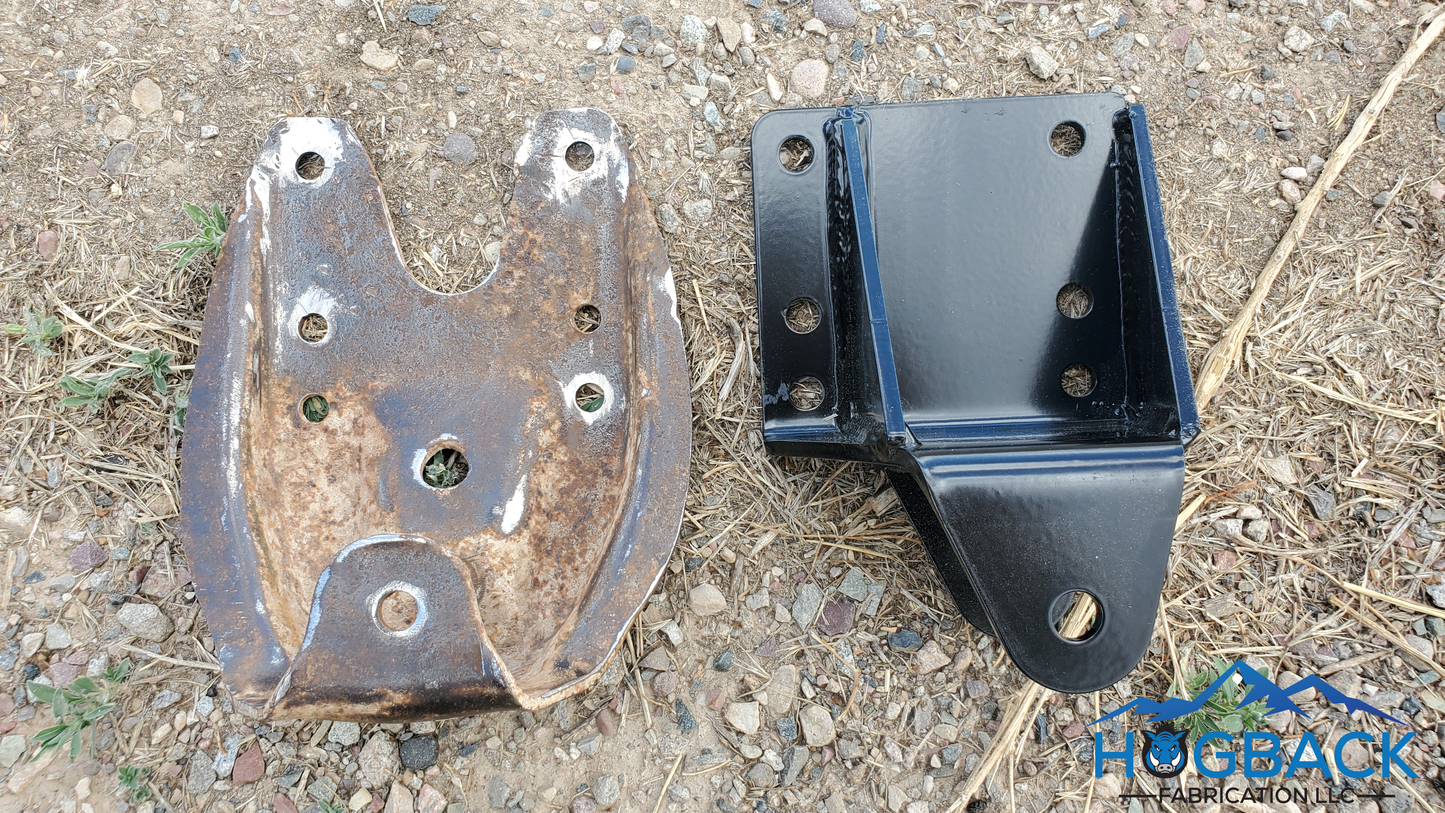

stock hanger vs shackle reversal
What are the benefits of a shackle reversal?
Typically, a truck is lifted with either a lifted spring or a lift block. A lift spring uses a higher spring rate resulting in a stiff lumber wagon ride. A lift block add more leverage causing axle wrap/hop under acceleration. Lift blocks are also notorious for falling out and causing terrible accidents.
A shackle reversal allows you to keep your stock spring rate and does not have the hazards of using a block. Some auto manufactures came stock with blocks in the back. The shackle reversal can replace those blocks allowing more traction for towing, off-road, or fun burn outs!
NOTE: With our shackle reversal kit you can re-use your stock shackles!
We also upgrade the mounting hardware to 1/2" which results in way stronger clamping force! Note: may need to ream out stock rivet holes. Uses 5/8" Grade 8 bolts for the leaf springs!
Shackle reversal vs blocks
Will a shackle reversal affect how my truck handles or tows?
Nope! It will drive just like it does now, in fact many newer heavy-duty trucks are running compression style hangers like the shackle reversals for your truck. Also if you are replacing your current blocks with a shackle reversal expect it to handle way better! No more extra leverage on those leaf springs causing axle wrap.
How easy is it to install a shackle reversal on my truck?
Very easy!
For a more in depth install with pictures check HERE
  1. Safely lift/jack truck up and put on jack stands. Make sure to use proper safety gear and equipment
  2. Locate rear shackle hanger and remove shackle/leaf spring from it
  3. Remove rivets holding shackle hanger on frame. This can be done super fast with an air chisel. Another method is using a cutoff wheel to cut an in the rivet. Then take a hand chisel to the heads to remove them.
  4. Bolt in shackle reversal and torque bolts to 60 FT/LBS. NOTE: SHACKLE REVERSAL OFFSET GOES TOWARDS FRONT OF TRUCK!
  5. Bolt in leaf and shackle into the shackle reversal. The rest is reverse of removal.
  6. After driving 100 miles make sure to re-torque bolts

Note: Adding a shackle reversal may change pinion angle in some cases, If you do need to correct your pinion angle a shim is usually all it takes to correct. Shims can be purchased at most drive shaft shops.

Note: The bracket lift height is based off of what you are at now. So for example if your truck came with a 2" block and you use a 4" reversal bracket it would be 4" lift keeping the block. If you remove the 2" block you will end up with 2" of lift above stock (4" reversal - 2" block = 2" lift).

 HOG TIP: Shackle reversals will typically move the axle forward some, so use one of these axle relocation plates to get it where you want click HERE

HOG TIP: Looking to gain more lift in the rear? Use a set of our 2" lift main eye brackets! Used in conjunction with our shackle reversal you can gain 6" of lift! Check them out HERE

HOG TIP: Looking for stronger rear shackles? You can find them HERE

 HOG TIP: Need help determining what to do to get to your desired suspension height? Check out this write up HERE

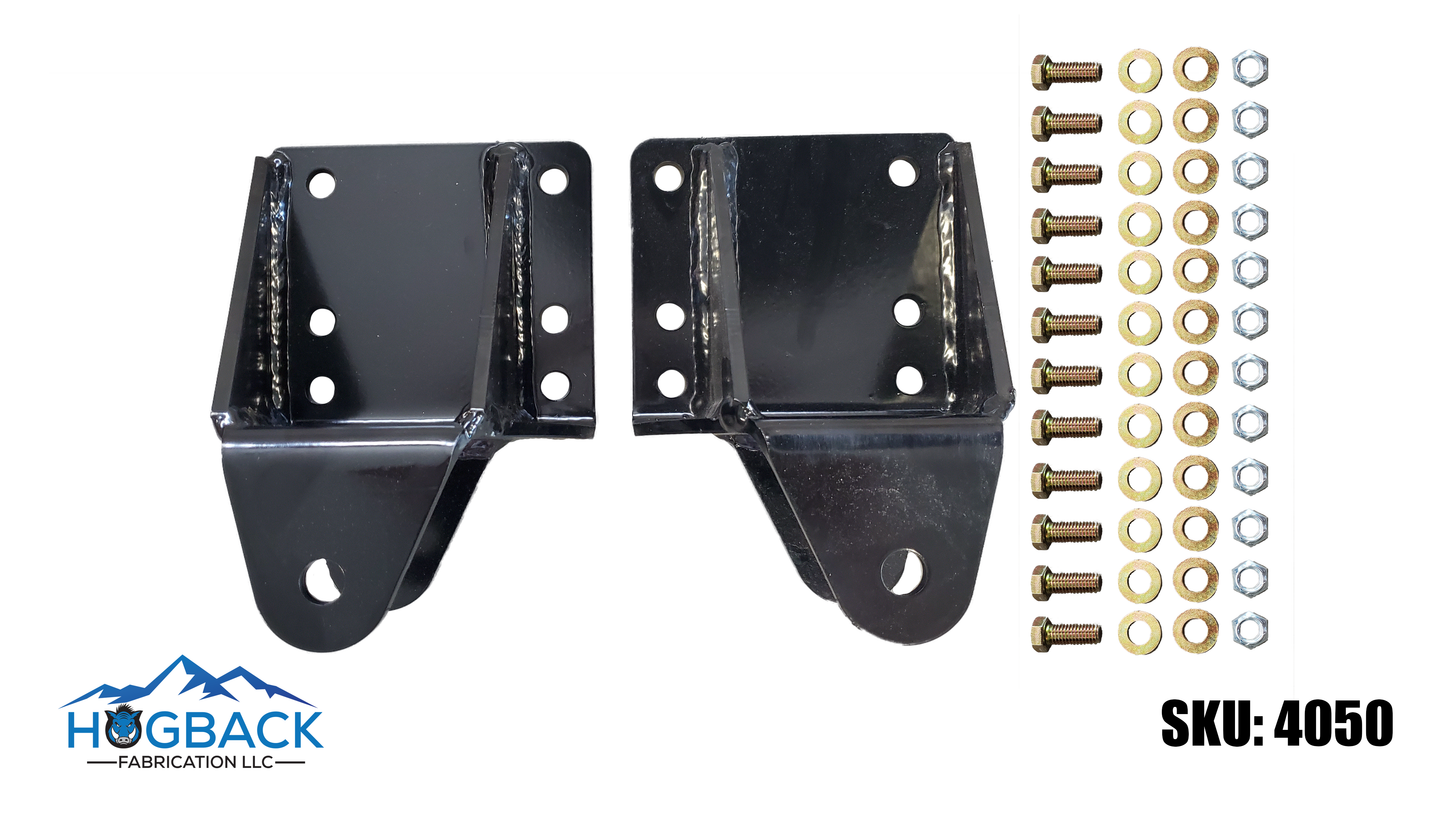

Materials

Gloss black powder coated steel.

.25" thick steel

Product comes welded

Hardware is grade 8

Comes with frame mounting bolts, washers, and top lock nuts

1/2" bolts, nuts, and washers
